TS-033: Mapped drives and printers missing after sign-in

Restored a Sales user’s mapped drive and HQ printer after confirming that Windows sign-in succeeded but the required Active Directory group memberships were missing.

Scenario

Kate Jones reported that after signing in to CL1, her Sales mapped drive and HQ printer were missing. She could still sign in to Windows, so I treated this as a resource access and group membership issue rather than a general authentication failure.

Priority reasoning: Impact was set to 3 - Low because only one user was affected. Urgency was set to 2 - Medium because the user could sign in, but normal department resources were unavailable. Using the configured priority matrix, Low impact plus Medium urgency gives 4 - Low.

ServiceNow Ticket

The incident was logged as a single-user access issue and assigned to Chloe Bennett in the Service Desk. The category was set to Account / Access, the subcategory to Group Membership, the service to Windows Infrastructure, the service offering to Active Directory Domain Services, and the configuration item to Active Directory. Impact was set to 3 - Low, urgency to 2 - Medium, and priority to 4 - Low.

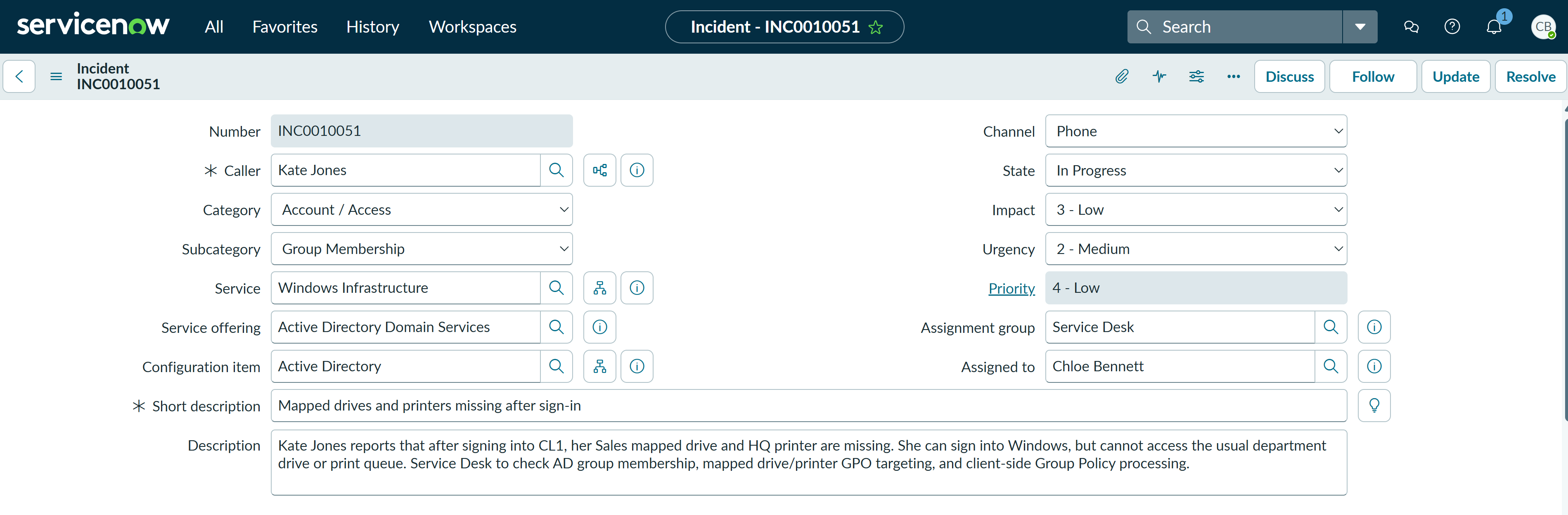

ServiceNow incident TS-033 showing Account Access category, Group Membership subcategory, Windows Infrastructure service, Active Directory Domain Services offering, Active Directory configuration item, Chloe Bennett assigned and P4 priority
Figure 1ServiceNow incident opened for Kate Jones with the Active Directory service classification, Chloe Bennett assigned and P4 Low priority.

Investigation

I validated the user-side symptoms on CL1. The Sales mapped drive was not visible under Network locations, and the expected HQ printer was not listed in Printers & scanners.

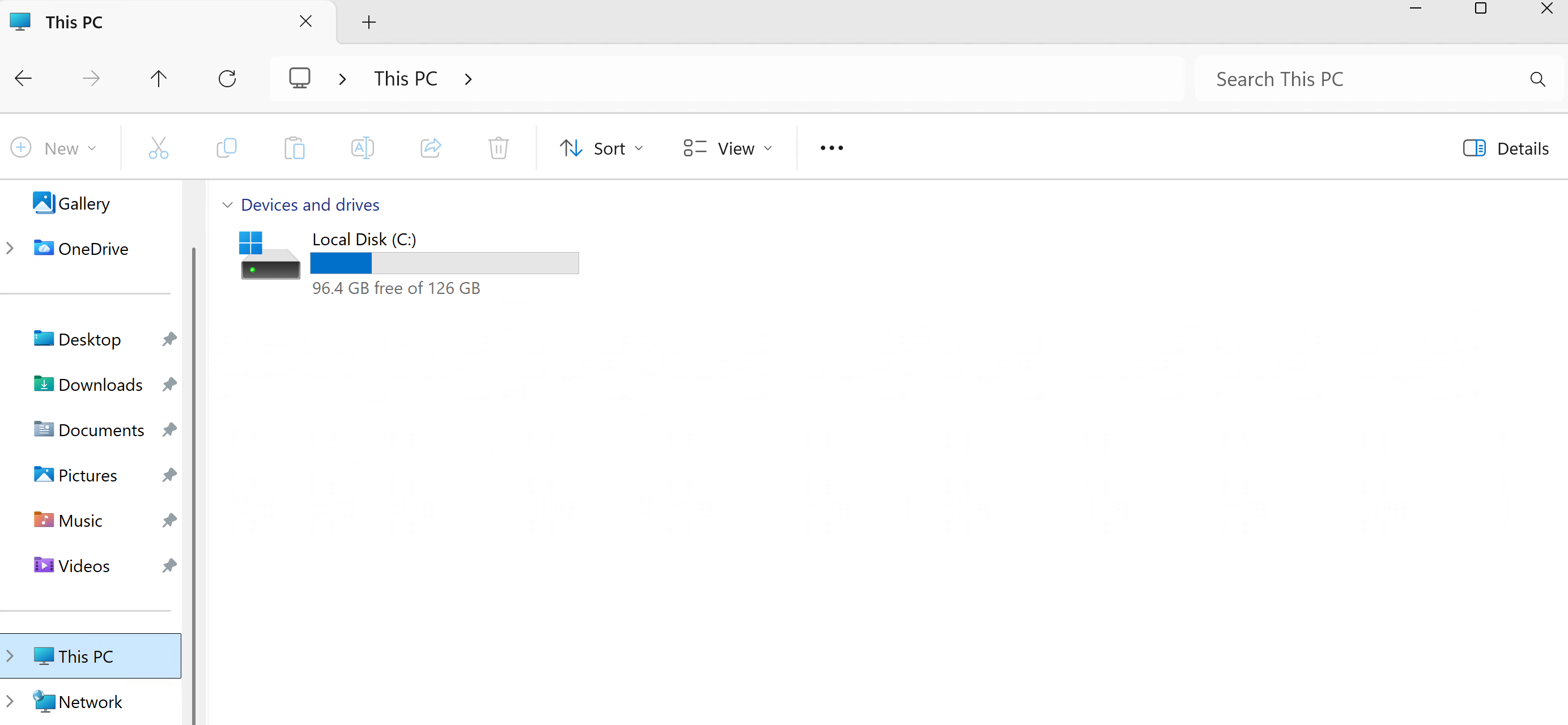

CL1 showing Kate Jones signed in with the Sales mapped drive missing
Figure 2The Sales mapped drive was missing from This PC.

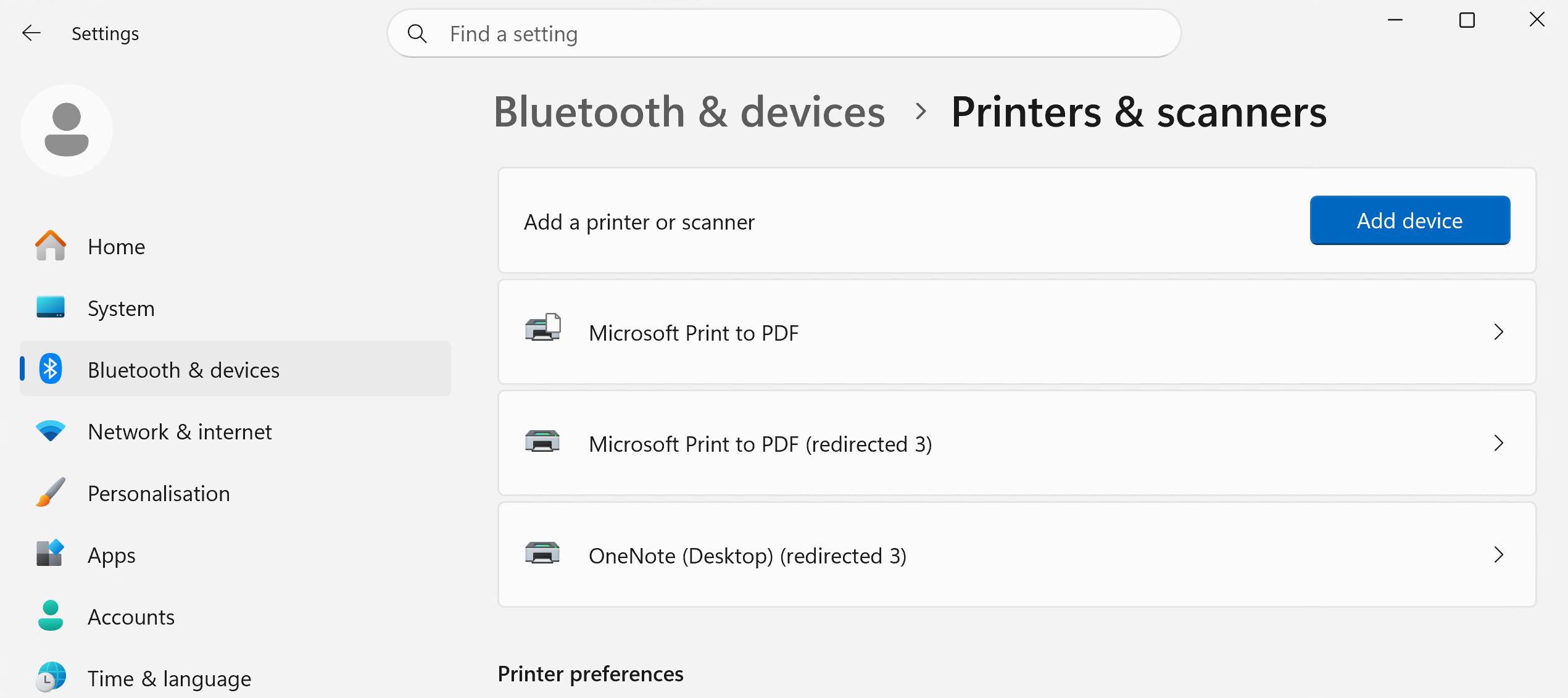

CL1 Printers and scanners showing PRN-HQ-01 on FS1 missing
Figure 3The expected HQ printer was missing from Printers & scanners.

I then checked Kate Jones' Active Directory group membership. The Sales mapped drive and HQ printer were controlled through AD security groups, so the missing resource groups explained why the drive and printer were not applying at sign-in.

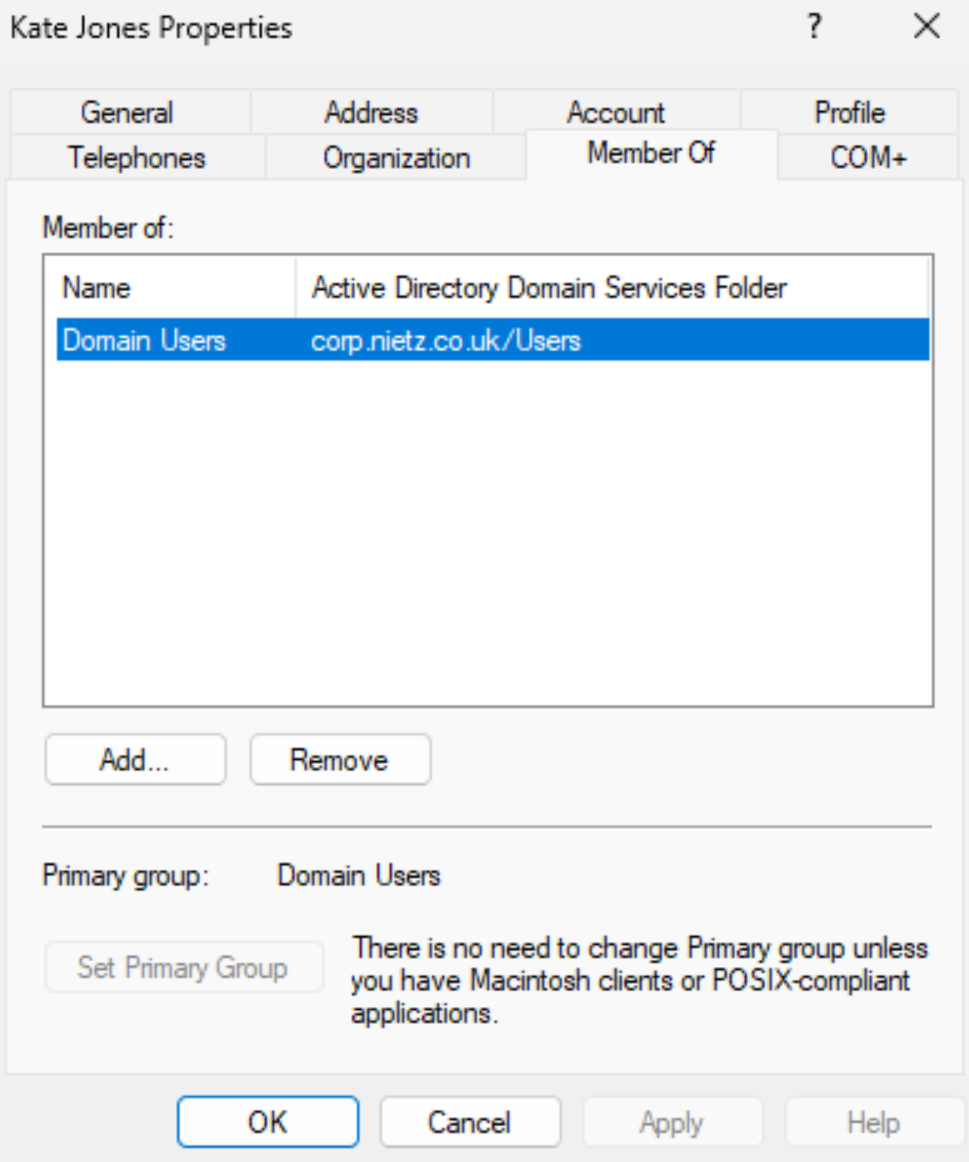

Kate Jones Active Directory member of tab showing only Domain Users before the fix
Figure 4Kate Jones was only a member of Domain Users, confirming the missing resource group membership.

Fix Applied

I added Kate Jones to the required resource groups: GG_SALES_RW for the Sales mapped drive and GG_PRN_HQ for the HQ printer.

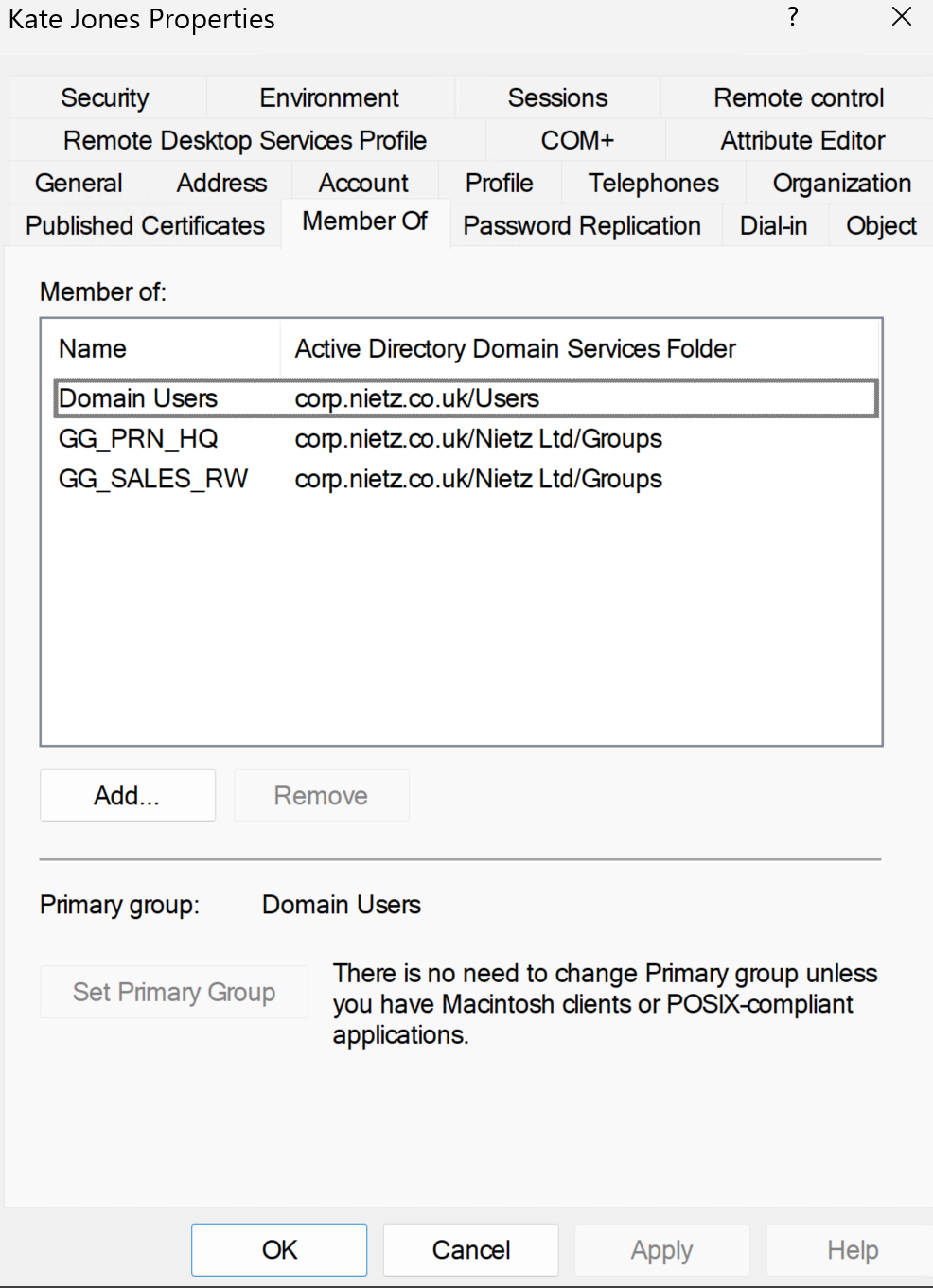

Kate Jones Active Directory member of tab showing GG_PRN_HQ and GG_SALES_RW added
Figure 5Kate Jones was added to the required Sales drive and HQ printer security groups.

Validation

After the group membership correction, the user signed out and back in to refresh the logon session and apply the updated group membership. The Sales Department mapped drive appeared as S:, and PRN-HQ-01 on FS1 appeared in Printers & scanners.

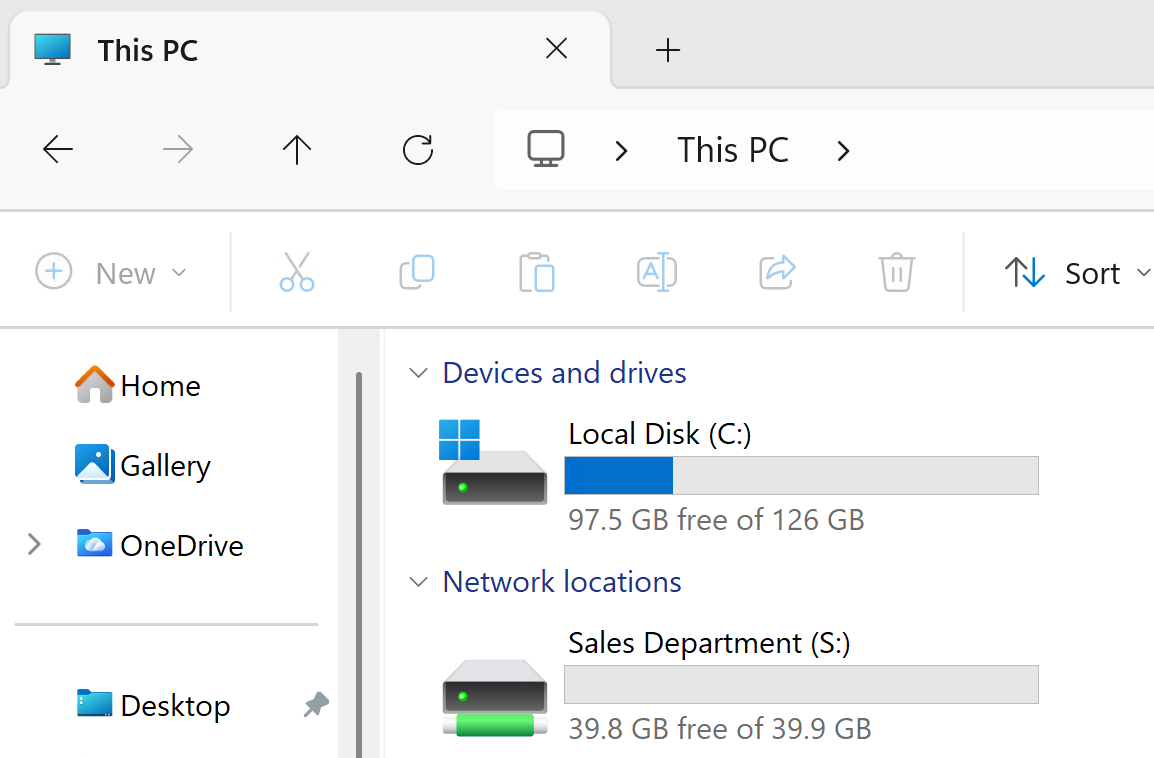

CL1 showing Sales Department mapped drive restored as S drive
Figure 6The Sales Department mapped drive was restored as S: after sign-out/sign-in refresh.

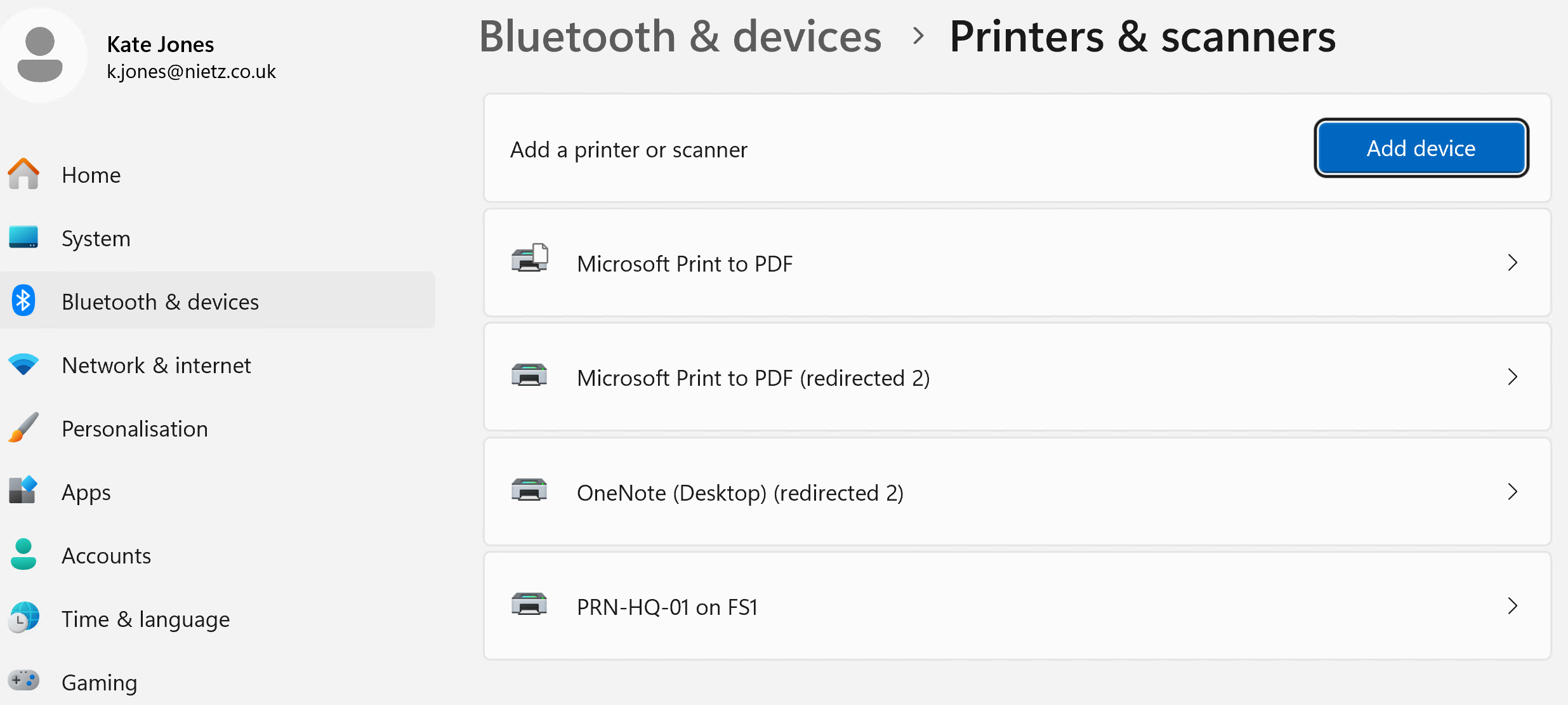

CL1 Printers and scanners showing PRN-HQ-01 on FS1 restored for Kate Jones
Figure 7The HQ printer was restored and visible in Kate Jones' Printers & scanners list.

Resolution

The ticket was resolved with the resolution code Solution provided. The resolution notes summarised the root cause, group membership change, logon refresh and validation outcome.

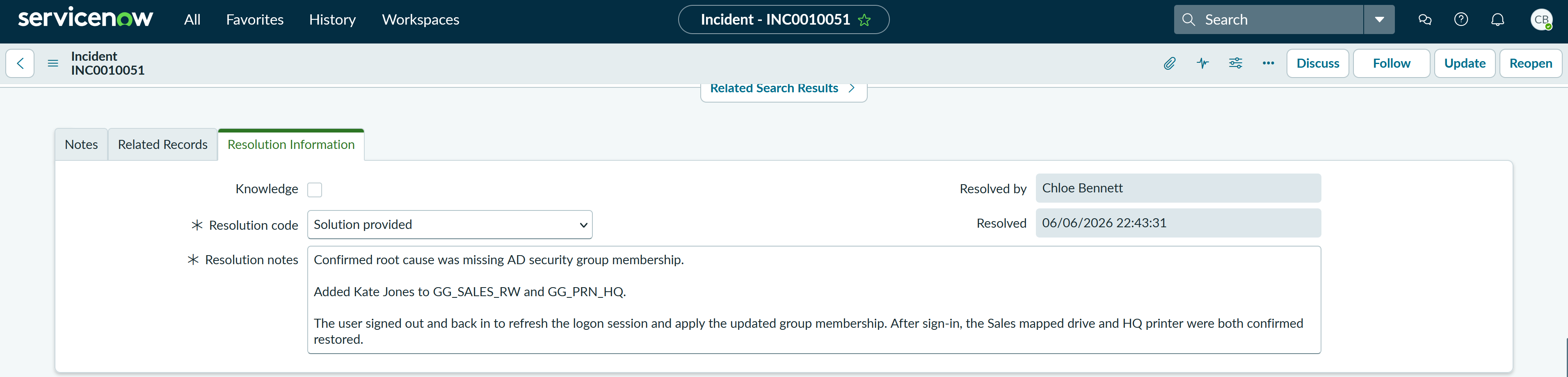

ServiceNow resolution information showing TS-033 resolved with Solution provided
Figure 8Resolution information showing Solution provided, Chloe Bennett as resolver, and final resolution notes covering the group membership fix and restored resources.

Summary

  • Resolved a P4 Low access incident affecting one user’s mapped drive and printer resources.
  • I classified the ticket as Account / Access > Group Membership and linked it to Windows Infrastructure, Active Directory Domain Services and the Active Directory configuration item.
  • I confirmed the user could sign in, but the Sales mapped drive and HQ printer were missing.
  • I identified missing AD security group membership as the root cause.
  • I added Kate Jones to GG_SALES_RW and GG_PRN_HQ.
  • I validated that the Sales mapped drive and HQ printer returned after sign-out/sign-in refresh.
  • I resolved the incident in ServiceNow using the code Solution provided with clear resolution notes.
