Lab 25: Feature Update Policy Windows 11

Overview

This lab continued the MD-102 endpoint-management build by separating Windows feature update targeting from the update ring behaviour configured in Lab 24. The update ring controls update experience and deferral behaviour; this lab controls the approved Windows feature release for the pilot device group.

The feature update policy targeted Windows 11, version 25H2 for the CL2 pilot device. The lab also captured readiness and reporting prerequisites so the feature update deployment could be tracked without forcing an operating system upgrade during the build.

Objective

The objective was to check Windows feature update readiness, enable Windows diagnostic data support for update reporting, create a Windows 11 feature update policy, assign it only to the Intune Windows pilot device group, sync CL2 and validate the deployment state through Windows Update reporting.

Environment

I first reviewed the Intune update readiness checkup to confirm the tenant had recent feature update readiness data. The readiness view showed two assessed devices, no failed feature update checkups and no listed affected-device issues, with the target operating system version already installed on the assessed devices.

I then enabled Windows diagnostic data support for Intune update reporting while leaving Windows license verification disabled because the lab tenant is using Business Premium rather than one of the listed Enterprise, Education or Microsoft 365 E3/E5 entitlements. After confirming the Feature updates area had no existing policy, I created WIN-UPD-02-Feature-Update-Windows-11-Pilot and targeted Windows 11, version 25H2 as a required update.

The policy was assigned only to GRP_Intune_Windows_Pilot_Devices, which contained the CL2 pilot device. CL2 was manually synced after assignment, and Windows Update reporting was used to confirm the policy appeared in reporting with one device in progress and no error, rollback, cancellation or on-hold status.

Configuration and Evidence

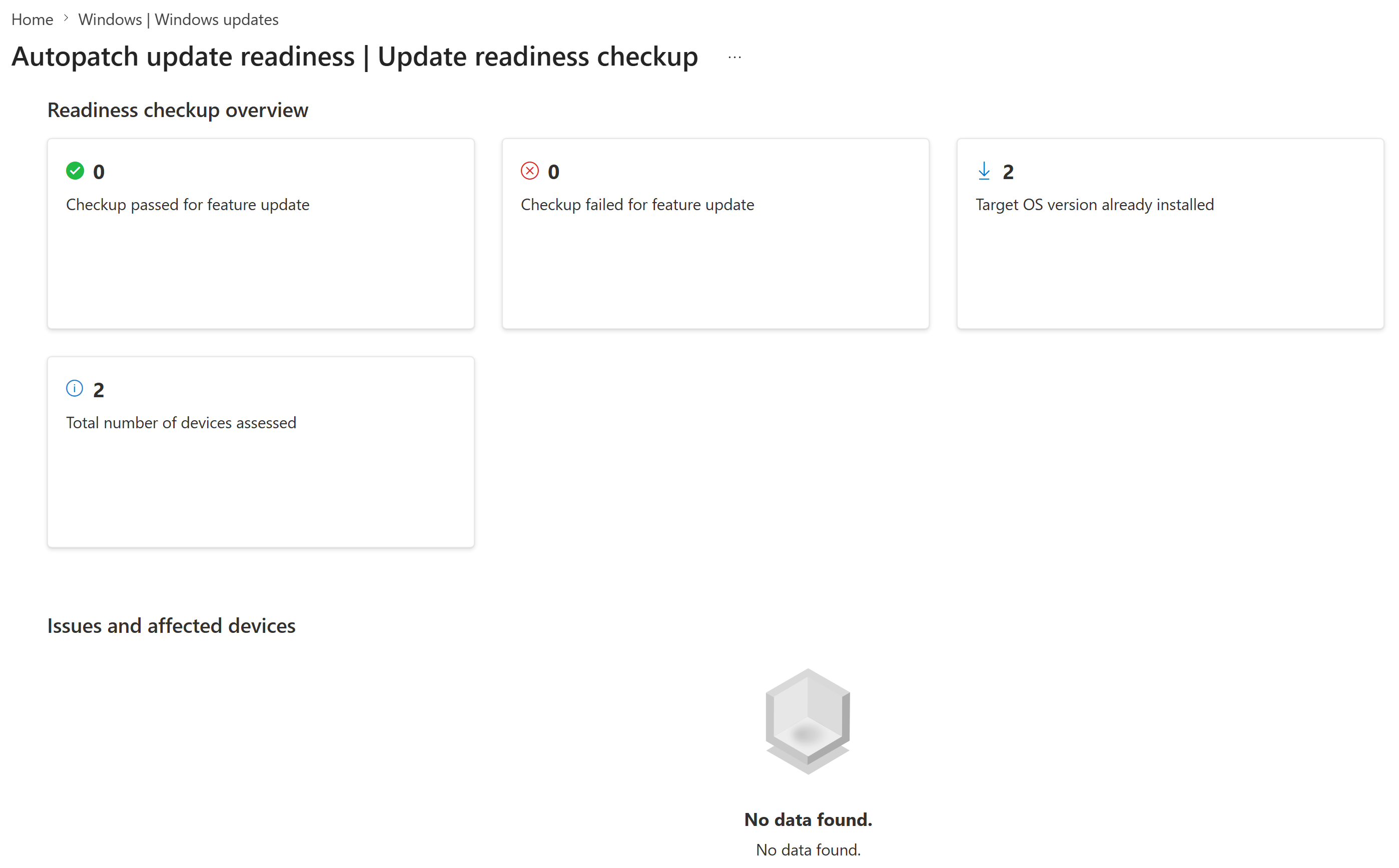

1. Feature Update Readiness Reviewed

I reviewed the Autopatch update readiness checkup before creating the Windows 11 feature update policy.

Context: The readiness view showed the target operating system version was already installed on the assessed devices, so this lab focused on feature update targeting and reporting rather than forcing an upgrade.

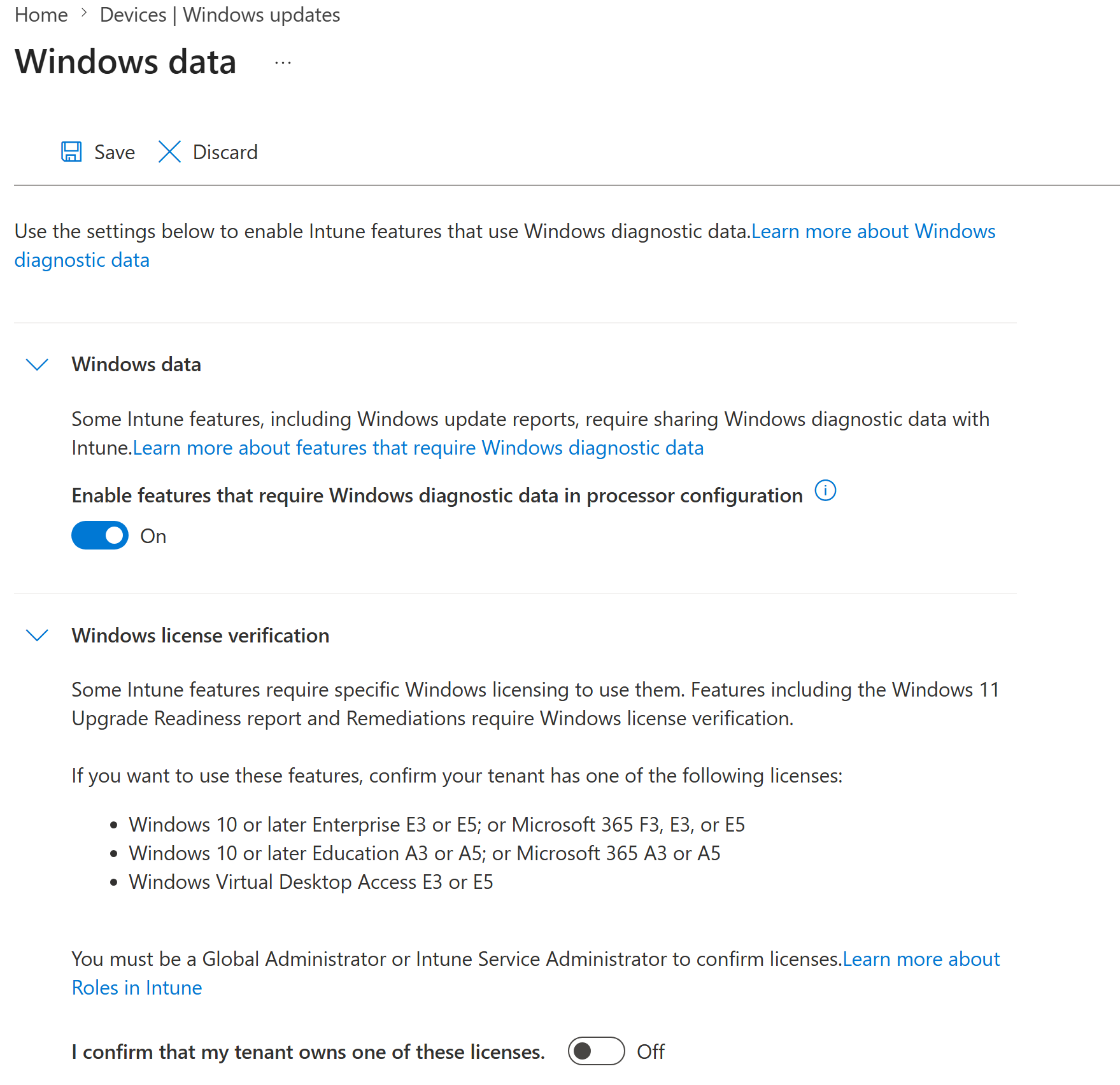

2. Windows Diagnostic Data Support Enabled

I enabled Windows diagnostic data support for Intune features that depend on detailed Windows Update reporting.

Context: Enabling diagnostic data support improves Intune update reporting visibility, while license verification was not enabled because the tenant did not use the listed Enterprise or Education entitlement in this lab.

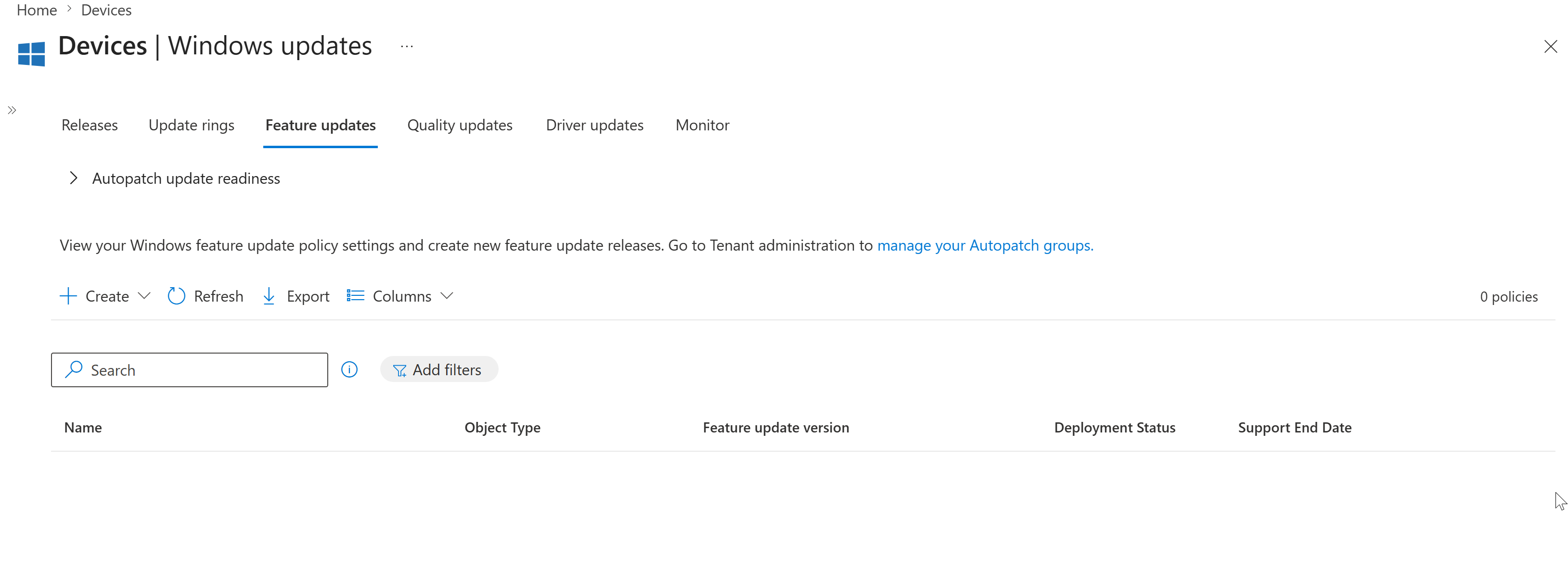

3. Feature Updates Area Reviewed Before Creation

I opened the Feature updates area in Intune before creating the pilot feature update policy.

Context: The empty Feature updates list established the starting state before the new policy was created.

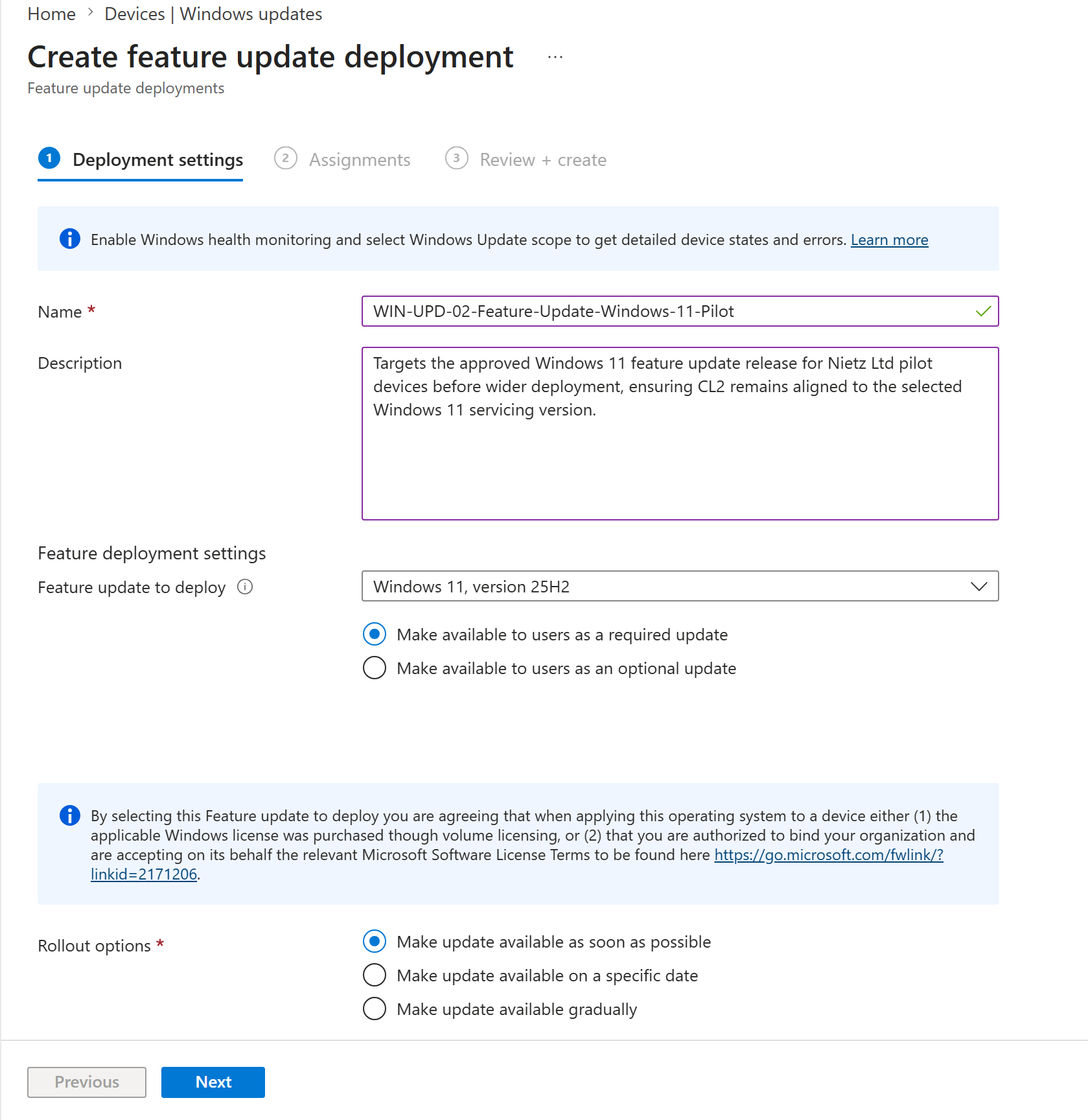

4. Windows 11 Feature Update Policy Configured

I created WIN-UPD-02-Feature-Update-Windows-11-Pilot, selected Windows 11, version 25H2 and made the update available as a required update as soon as possible.

Context: A dedicated feature update policy controls the approved Windows release separately from the update ring that controls update timing, deferral and restart behaviour.

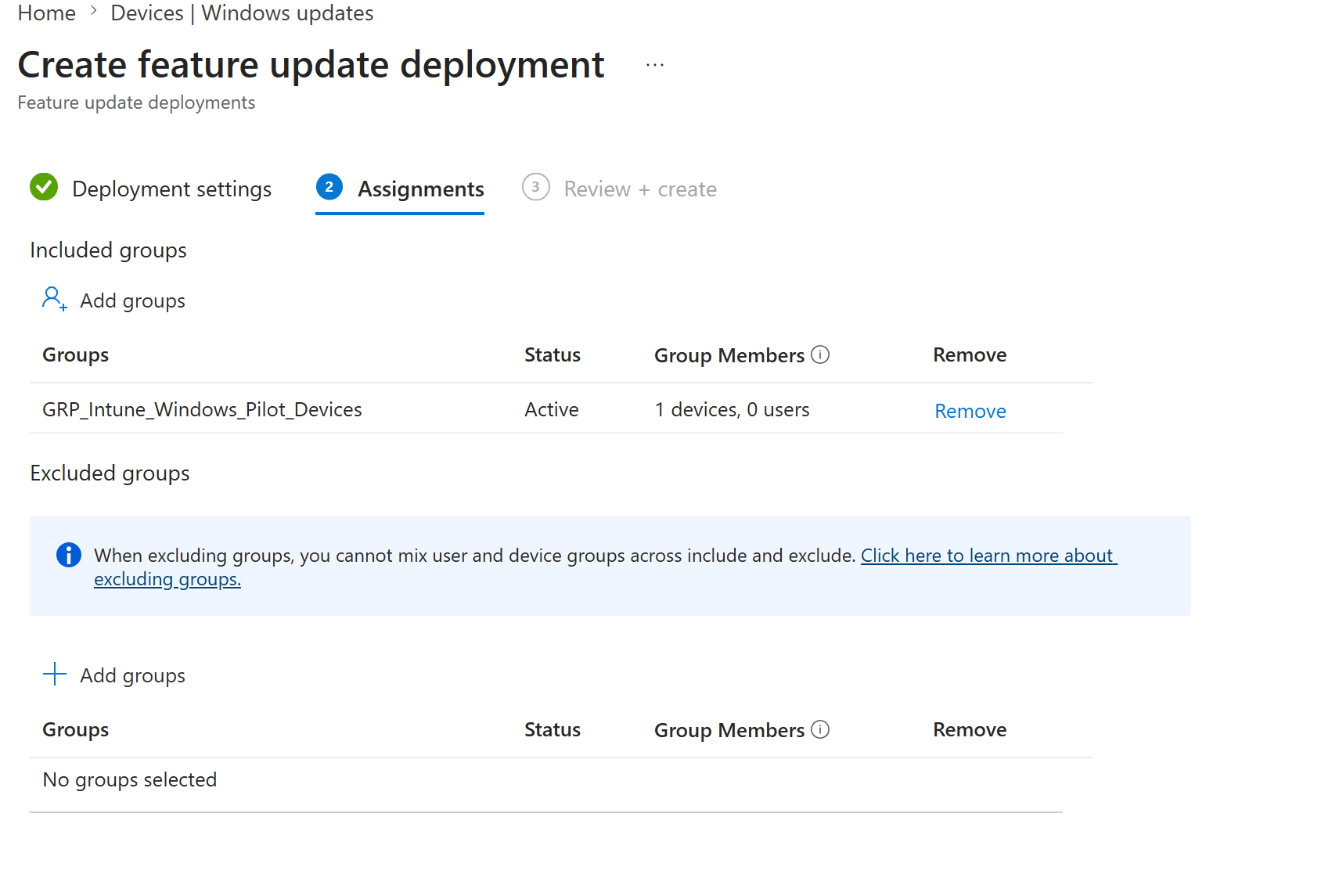

5. Pilot Device Group Assigned

I assigned the feature update policy to GRP_Intune_Windows_Pilot_Devices so the policy targeted the CL2 pilot device before any wider deployment.

Context: Device-based assignment kept the rollout scoped to the pilot endpoint rather than targeting all users or all devices.

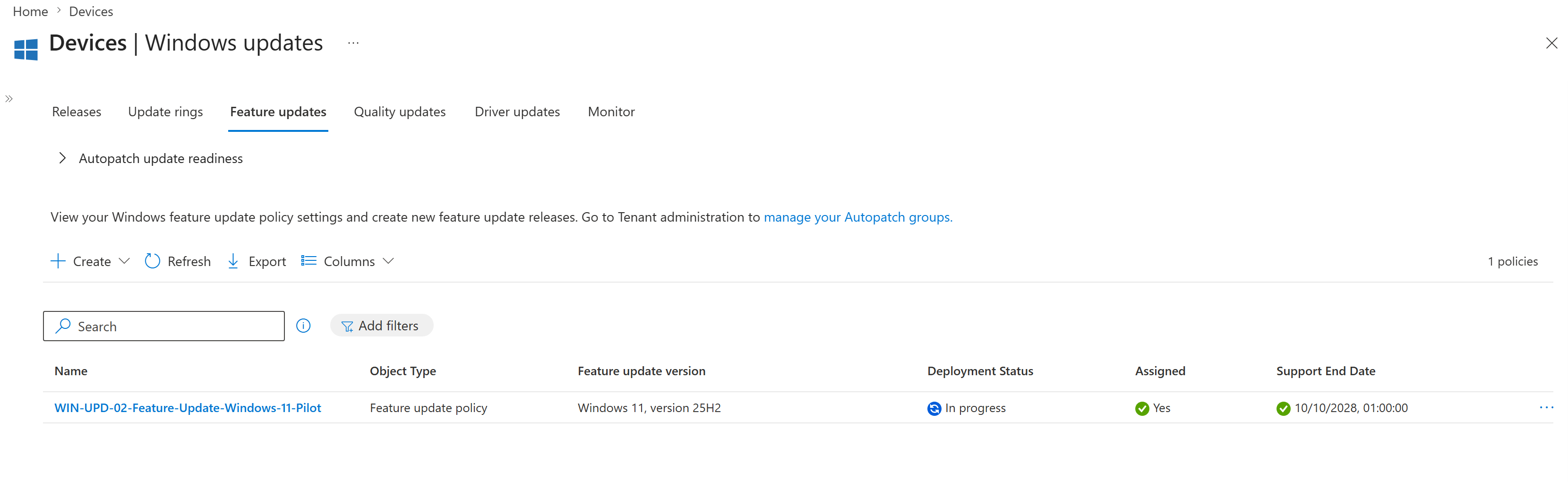

6. Feature Update Policy Created

I confirmed that the feature update policy was created and visible in the Intune Feature updates list with the expected Windows 11 25H2 target, assignment status and deployment state.

Context: The Feature updates list confirmed the policy existed, was assigned and had entered deployment reporting.

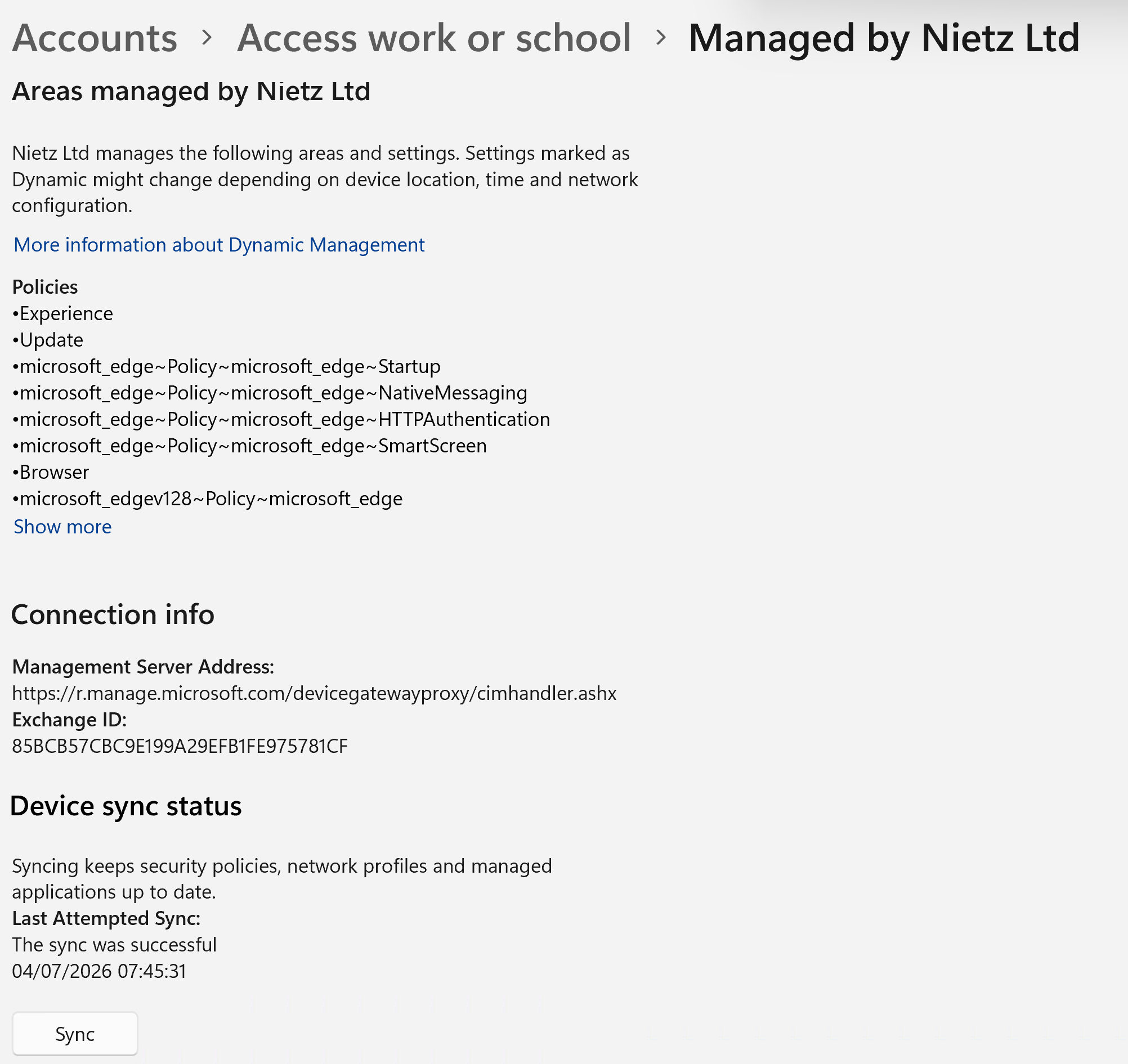

7. CL2 Manually Synced

I manually synced CL2 from the Windows work or school account settings after assigning the feature update policy.

Context: Manual sync provided endpoint-side evidence that CL2 contacted the management service after the new update policy assignment.

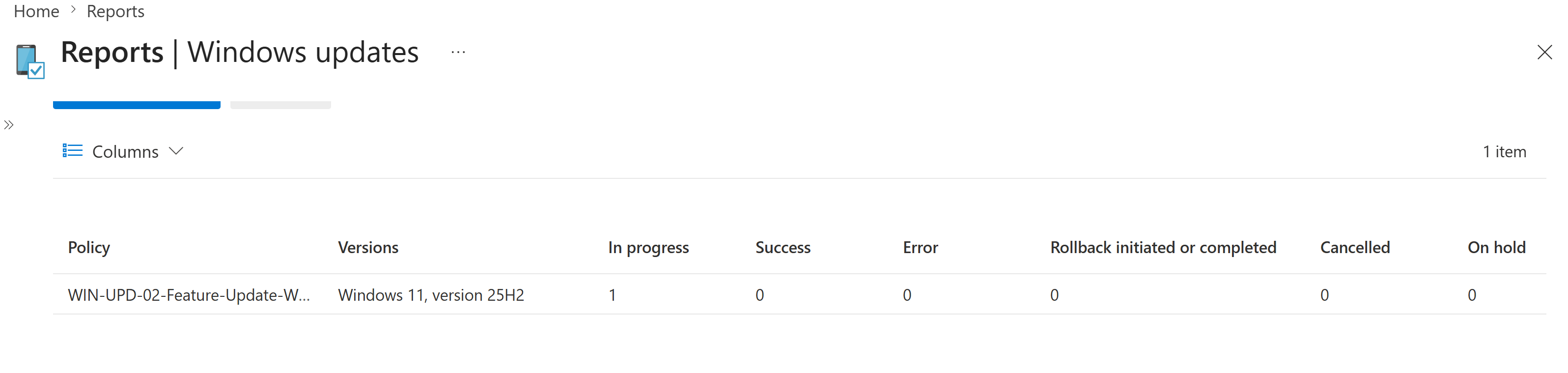

8. Feature Update Reporting Reviewed

I reviewed Windows Update reporting for the new feature update policy after assignment and device sync.

Context: The report was captured as an in-progress deployment state, not a completed success state. This avoids claiming that the feature update completed when Intune had not yet reported success.

Validation

The lab was validated when readiness data showed assessed devices had no failed feature update checks, Windows diagnostic data support was enabled for reporting, the Windows 11 25H2 feature update policy existed in Intune, the policy was assigned only to the Windows pilot device group, CL2 was manually synced and Windows Update reporting showed one device in progress with no errors, rollback, cancellation or on-hold state.

Key Technical Outcomes

Nietz Ltd now has a dedicated Windows 11 25H2 feature update policy for the Intune Windows pilot device group. This provides controlled feature release targeting for CL2 and can be used as the model for future Windows feature update pilots before broader deployment.
